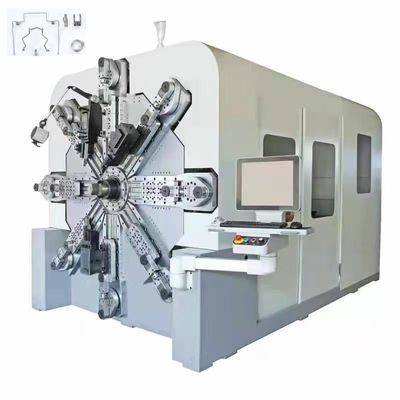

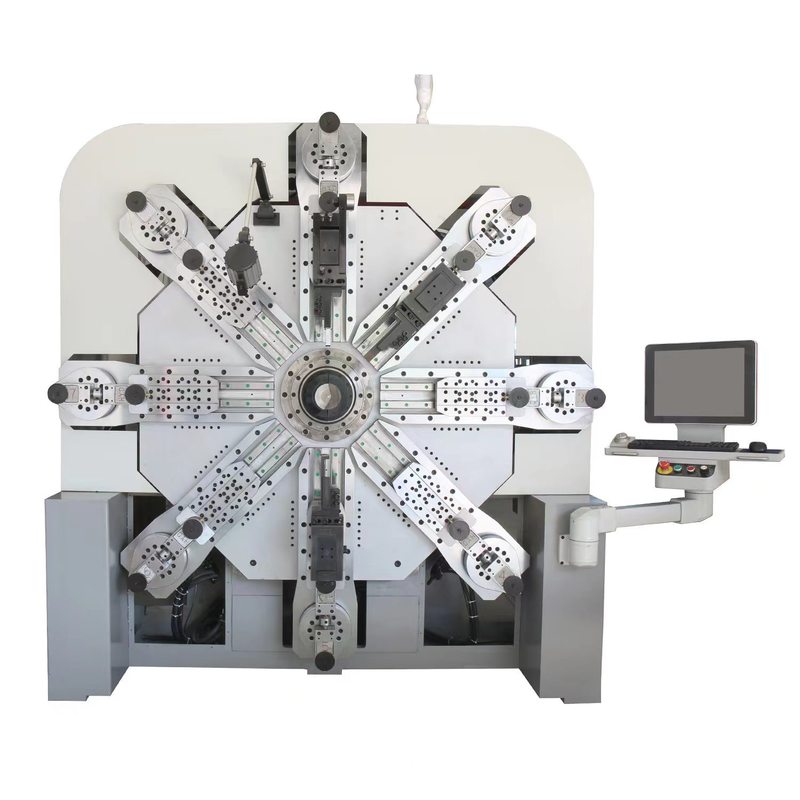

HYD-80T-13A 13 Axes CNC Spring Machine with 80m/min Max Wire Speed and 68.5KW Power

Szczegóły Produktu:

Miejsce pochodzenia:	Guangdong, Chiny
Nazwa handlowa:	HYD

Zapłata:

Minimalne zamówienie:	1

Kontakt

Szczegółowy opis produktu

Waga:	8000 kg	Woltaż:	380 v
Moc:	68,5 kW	Rozmiar drutu:	Stal niskowęglowa: 5-10 mm, stal wysokowęglowa: 3-8 mm
Servo Motors:	13 osi	Maksymalna prędkość drutu:	80 m/min
Wałek podawania drutu:	4 par	Maksymalny błąd:	±0,2 (długość)
Kolej ołowiu:	210 mm	Najkrótsza długość anioła:	4 -krotna średnica drutu
Zasilacz:	380 V ± 10%V50 Hz	Waga maszyny:	8000 kg
Rozmiar maszyny:	Dł.5500szer.2200wys.2400 mm	Moc serwomotora:	68,5KW
Marka motorowa:	SANYO
Podkreślić:	13 Axes CNC Spring Machine , 80m/min Max Wire Speed Spring Coiling Machine , 68.5KW Power Computer Spring Machine

HYD-80T-13A 8mm High Quality Spring Machine Wire Forming Machine Camless Spring Machine

Product Specifications

Model	HYD-80T-13A
Wire Size	Low-carbon Steel: 5-10mm High-carbon Steel: 3-8mm
Servo Motors	13 axes
Lead Rail	tineraries 210mm
Wire Feed Roller	4 Pairs
Maximum error	±0.2(Length)
Max Wire Feed Speed	80m/min
Control System	1SET

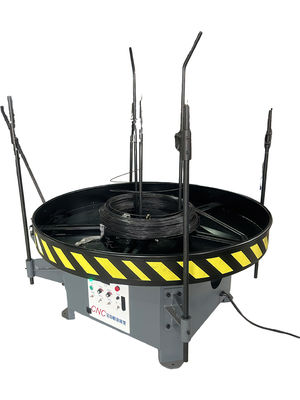

Decoiler	1000KG
Reducer	11PCS
Servo Motor Power	68.5KW
Motor Brand	Sanyo
Shortest Angel Length	4 Times Wire Diameter
Power Supply	380V±10%V50Hz
Machine Dimension	8000KG
Machine Size	L5500W2200H2400MM

Product Images

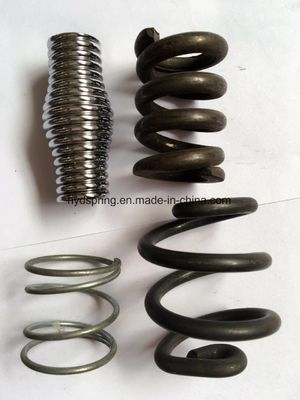

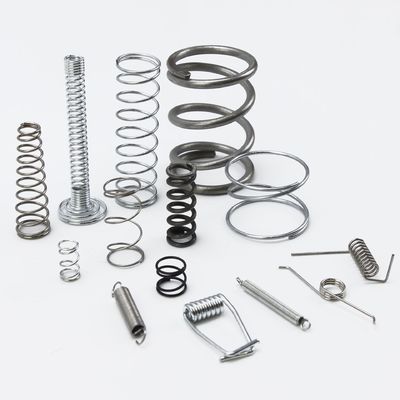

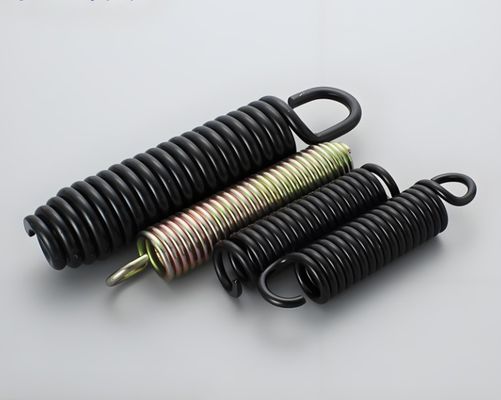

Application Scenarios

Product Categories

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation ,and 70% should be finished before the shipment.We also accept other payment term.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit.But it depends on machine model.Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs
